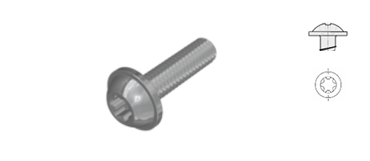

Metric Machine Screws
Available dimensions
top
Compatibility
top
Levels of compatibility to the Screwerk standard:
| Level | Meaning | |
|---|---|---|
| 0 | identical | It is the identical screw design. |
| 1 | compatible | The screw has the same key dimensions but a slightly different thread design. It can be exchanged without any doubt even if specified in drawings. |
| 2 | comparable | The screw fits the same purpose and key parameters like diameter, length, head design, drive and material do not differ. |
| 3 | alternative | If a single key parameter except the diameter is different the screw is considered an alterantive. |
Compatibility of Screwerk STM screws to other standards:
ISO compatibility with Screwerk STM
top
Comparison between the ISO and Screwerk STM norm:
| ISO | Screwerk | Compatibility | Advice |
|---|---|---|---|
| ISO 7045 | STM32 | identical | |
| ISO 14581 | STM41 <M2 | similar | |
| ISO 14581 | STM41 M2-M10 | identical | |
| ISO 14583 | STM39 <M2 | similar | |
| ISO 14583 | STM39 M2-M10 | identical |
